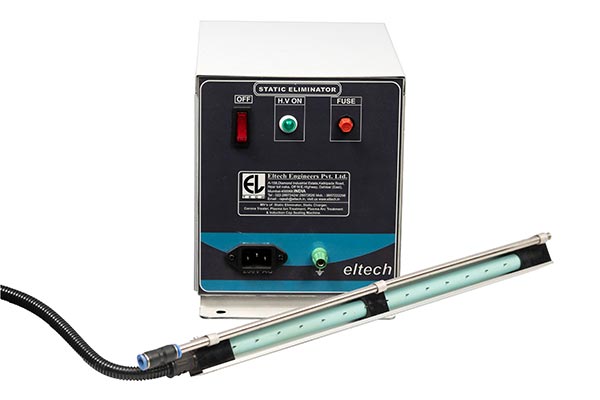

ELTECH Air Assist Ionising provides ionization over longer and wider areas. Ionization is boosted by acompressed air system.
The Air-Assist bar is designed to improve discharge performance at a longer range of distances by moving ions to the target with a precise airstream.
A shatterproof air tube runs the length of the bar between a high density of long-life tungsten emitters. Small perforations in the tube release jets of air, picking up ions produced by both polarities.
| Supply voltage | 230 V AC, 50 Hz, 25 Watts |
| Output voltage | 7 KV |
| Output short circuit current | (Ik) < 5 mA |
| Power consumption | approx. 50 VA |
| Maximum load | 10 m (HV cable incl. electrode) |
| Frequency | 50 - 60 Hz |
| Mains cable length | approx. 2.5 meter with earthing - pinplug |
| Weight | 8 kg |
| Distance | Upto 4 Feet Maximum |
| Dimension | 168mm L x 260mm W x 190mm H (eltech 335) |
| Operating Distance Speed bar | 2” to 9” (50-225 mm) |
