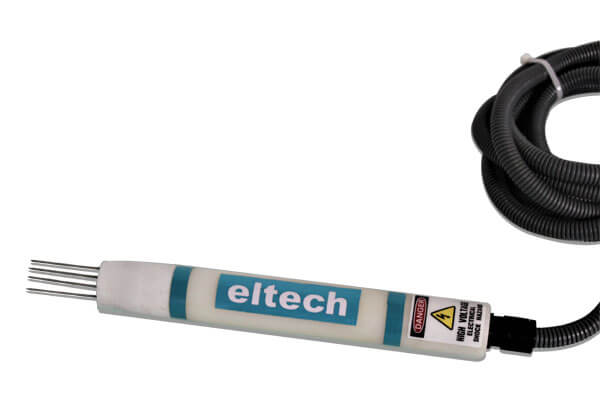

The Eltech 310 Edge Pinning is a powerful pinning head intended for use on cast-film lines. Pinning the edges of the cast film to the chill roller prevents necking of the film. Resistively coupled titanium pins deliver spark free pinning.
A safe, controllable, reliable and cost-effective method of applying static charge for temporary adhesion in applications including interleaving steel sheets, pinning plastic sheets and webs, bag making, wrapping machines.
| Working distance | Min. 12.5 mm |
| Housing material | PTFE |
| Ionisation points | SS |
| Cable | High voltage cable |
| Weight | 0.3 kg/m |
| Ambient temperature | 150 °C |
| Use circumstances | Industrial |
| Operating voltage | 0 - 12 KV |

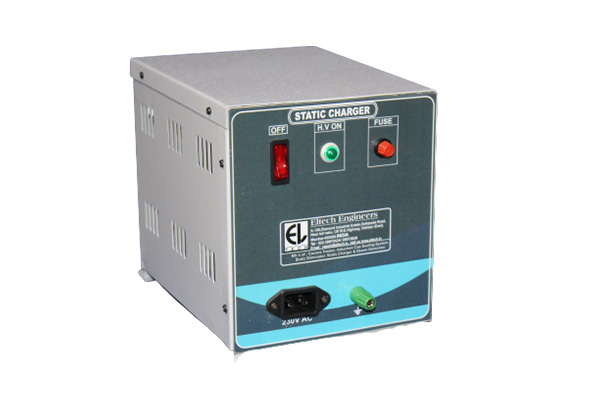

| Suitable power unit | EL-335 |
