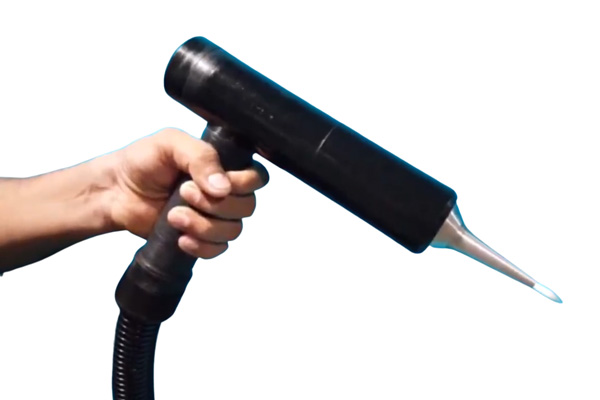

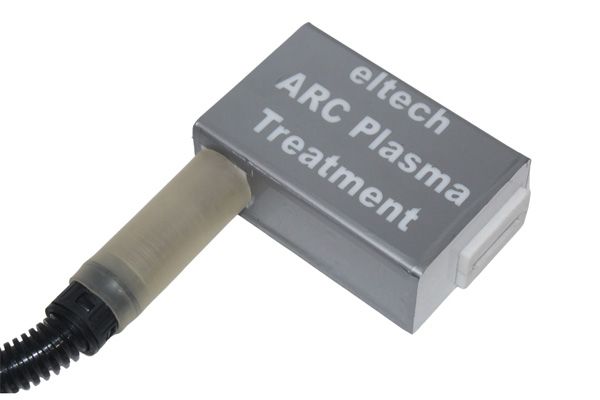

| HANDHELD PLASMA ION | HANDHELD PLASMA ARC | |
| Model | hplasma-AC-500 | hplasma-AC-600 |
| Input Voltage | 230 V AC, ± 5 % ,1 Ø , 3 Wire | 230 V AC, ± 5 % ,1 Ø , 3 Wire |
| Input Frequency | 50 Hz ± 5 % | 50 Hz ± 5 % |
| Plasma Current | 3.5 Amp | 3.5 Amp |
| Output Voltage | 3-5 KV | 3-5 KV |
| Output frequency | 40 KHZ | 40 KHZ |
| Output power | 700 Watts | 700 Watts |
| Max. Ambient Operating Temp. | 0 ~ 50°C | 0 ~ 50°C |
| Discharge Head | 1 | 2 |
| Compressed Air Supply | 3 Bar, Dry, Oil Free, Dust Free, Moisture Free | |
| Discharge Width | 10 - 12 mm | 40 mm |
| Dimensions | 540mm X 340mm X 330MM | 470mm X 310mm X 770mm |
| Weight | 22 kg | 46 kg |
| Certifications | CE, RoHs, ISO | CE, RoHs, ISO |
